How to Roll-to-roll flex PCB manufacturing?

Flexible electronics have moved from niche to mainstream. Wearable devices, foldable displays, medical sensors, automotive interiors, and IoT modules are all driving sustained demand for high-volume, thin, lightweight, and mechanically flexible circuits.

According to multiple industry analyses, the global flexible electronics market is growing at 15–20% CAGR, with volume demand concentrated in consumer electronics and healthcare.

Traditional sheet-based (S2S) flex PCB processing, while mature and precise, becomes a scalability bottleneck when monthly demand reaches hundreds of thousands or millions of units. Handling losses, batch changeover times, and panel-level inefficiencies limit throughput and increase the cost per unit.

This is where roll-to-roll flex PCB manufacturing becomes strategically critical.

One-sentence definition (featured snippet target):

Roll-to-roll (R2R) flex PCB manufacturing is a continuous, web-based production process where flexible copper-clad substrates are processed, patterned, finished, and rewound in roll form to achieve high throughput and low unit cost circuit fabrication.

In high-volume scenarios, the R2R flex PCB process enables:

  • Continuous production instead of batch processing

  • Superior material utilization

  • Lower labor and handling cost per square meter

  • Higher consistency for mass production

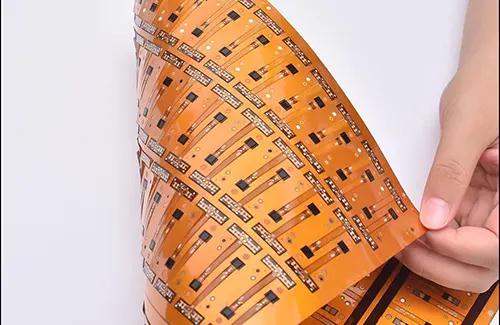

Flex PCB

Flex PCB

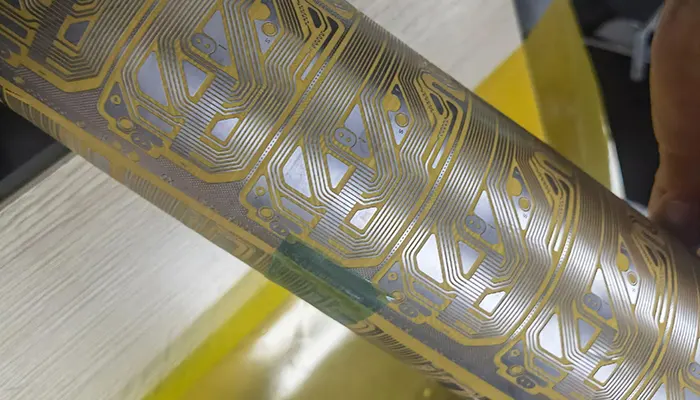

What Is Roll-to-Roll (R2R) Flex PCB Manufacturing?

Definition: R2R vs Traditional PCB Processing

Conventional PCB and flex PCB production are fundamentally discrete processes. Material is cut into sheets, stacked, processed, and transferred station by station. Each transfer introduces time loss, alignment risk, and labor cost.

In contrast, R2R flex PCB manufacturing is a continuous web process. The flexible substrate is unwound from a roll, processed sequentially through multiple stations (cleaning, imaging, etching, finishing, coating), and then rewound.

This model is borrowed from industries such as film coating, printing, and lithium battery electrode production, but adapted for high-precision circuit fabrication.

Continuous Web-Based Manufacturing Explained

In an R2R line, the substrate is always in motion. Process steps are synchronized through:

  • Web tension control

  • Servo-driven rollers

  • Optical registration systems

Instead of “panel in – panel out,” R2R is “meter in – meter out.” The key engineering challenge is maintaining dimensional stability and registration accuracy while the material is moving.

R2R vs S2S vs Hybrid Processing

Many competitors oversimplify the discussion into “R2R or S2S.” In practice, hybrid processing is widely used in industrial production.

AttributeR2R Flex PCBS2S Flex PCBHybrid R2R + S2S
Production modeContinuousBatch / discreteMixed
ThroughputVery highMediumHigh
Registration accuracyMedium–high (depends on equipment)Very highHigh
Design complexity supportedSimple–mediumMedium–highMedium–high
Typical use casesWearables, antennas, sensorsHDI flex, fine pitchDisplay drivers, camera modules

Hybrid processing often means:

  • Circuit imaging and etching done in R2R

  • Final outline routing, stiffener bonding, or laser cutting done in S2S

This approach balances speed with precision and is common in camera FPC, display FPC, and medical flex circuits.

How Roll-to-Roll Flex PCB Manufacturing Works (Step-by-Step)

Understanding the roll-to-roll flex PCB process flow is essential for correct design-for-manufacturing (DFM) decisions.

Substrate Preparation

The foundation of R2R processing is the flexible substrate roll.

Most commonly used materials:

MaterialTypical ThicknessKey PropertiesApplication Notes
Polyimide (PI)12.5–50 μmHigh temperature resistance, dimensional stabilityStandard for electronics
PET25–125 μmLow cost, limited heat resistanceWearables, disposable sensors
FCCL (PI + Cu)Cu 9–35 μmDirect circuit formationMainstream R2R material

Width constraints:
Industrial R2R lines typically handle 250–520 mm web width, though advanced lines can reach 700 mm. Wider webs increase productivity but demand more precise tension and alignment control.

Circuit Pattern Formation

There are two mainstream approaches:

Photolithography-based imaging
This mirrors traditional flex PCB imaging, but in continuous mode. Photoresist coating, exposure, and development occur inline. Registration is achieved using optical fiducial tracking.

Printing-based alternatives
Inkjet and screen printing are used for:

  • Carbon circuits

  • Silver ink traces

  • Low-current applications

These methods reduce chemical processing but have lower resolution and conductivity.

Engineering challenge:
Maintaining ±20–30 μm registration accuracy while the substrate is moving is non-trivial. Web stretch, temperature drift, and roller eccentricity all affect pattern fidelity.

Etching and Circuit Definition

After imaging, copper is removed through continuous chemical etching.

Key parameters:

  • Etch rate uniformity across web width

  • Copper thickness control (typically 9–18 μm for R2R)

  • Undercut control at high line speeds

Because the web never stops, dwell time is controlled by line speed and etch chamber length, not by batch timing. This requires precise process tuning.

Surface Finishing

Not all surface finishes are suitable for R2R.

Surface FinishR2R SuitabilityReason
ENIGLimitedLong dwell time, multi-step chemistry
Immersion TinGoodSimple chemistry, fast reaction
OSPVery goodInline compatible, low thickness
Carbon InkVery goodPrinting-based, no wet chemistry

High-speed lines are sensitive to oxidation and contamination, so nitrogen shielding and inline cleaning are often used.

Coverlay / Protective Layer Application

Protection is achieved by either:

Laminated coverlay film
Pre-cut PI film with adhesive is laminated under heat and pressure.

Liquid covercoat (LPI / LCP)
Applied via coating or printing, then UV/thermal cured.

In R2R, the dominant engineering issue is web tension balance. Uneven tension leads to:

  • Wrinkling

  • Bubbles

  • Misalignment of openings

Advanced lines use closed-loop tension control systems to keep variation within ±1–2%.

Electrical Testing and Rewinding

Before final rewinding:

  • Inline AOI checks trace continuity and shorts

  • Inline resistance monitoring flags process drift

Finished material is then rewound into master rolls or slit into smaller rolls for downstream processes such as laser cutting, stiffener bonding, or SMT.

Key Equipment Used in Roll-to-Roll Flex PCB Production

R2R is not simply “longer machines.” It is a system-level engineering investment.

Unwinding and Rewinding Systems

These manage:

  • Roll loading and splicing

  • Diameter compensation

  • Tension stabilization

Without stable unwinding, downstream registration becomes impossible.

Web Tension Control Systems

Typically include:

  • Load cells

  • Dancer rollers

  • Servo-driven nip rollers

High-end systems maintain tension variation within ±0.5–1%, which is critical for fine-line circuits.

Optical Registration and Alignment Systems

CCD cameras track fiducials in real time. The system dynamically adjusts:

  • Web speed

  • Lateral position

  • Exposure timing

This is the heart of dimensional accuracy in R2R flex PCB production.

Inline AOI and Thickness Monitoring

Unlike S2S, defects in R2R can propagate rapidly. Therefore:

  • Inline AOI detects opens, shorts, and pattern breaks

  • X-ray or laser thickness gauges monitor copper and coating layers

This enables closed-loop process control, not post-process inspection.

Why Equipment Cost Is High, but Unit Cost Is Low

An industrial R2R flex PCB line can cost 2–5× more than an equivalent S2S line. However:

FactorR2RS2S
Labor per m²Very lowMedium
Material utilizationHighMedium
Changeover timeMinimalSignificant
Output per hourVery highMedium

At volume, the cost per circuit drops dramatically, which is why R2R dominates in:

  • Smartphone antennas

  • Wearable sensors

  • Display driver FPCs

  • Medical disposable electronics

Advantages of Roll-to-Roll Flex PCB Manufacturing

Roll-to-roll processing is not simply an alternative production method; it is an industrial scaling strategy. Its advantages become decisive when volume, consistency, and unit economics dominate design decisions.

Extremely High Production Efficiency

R2R lines operate in continuous mode, typically at 2–10 m/min depending on process complexity and resolution. This enables throughput levels that are structurally impossible for sheet-based systems.

For example:

ParameterR2R LineS2S Line
Effective output2,000–6,000 m²/day300–800 m²/day
Changeover timeMinutes30–120 min
Labor per shift2–4 operators6–10 operators

Because there is no panel loading/unloading cycle, utilization efficiency routinely exceeds 85–90%, compared with 60–70% in S2S.

Low Material Waste

In the S2S flex PCB, waste is generated by:

  • Panel margins

  • Fiducial zones

  • Handling damage

R2R processing eliminates most panelization losses. The material is processed edge-to-edge, and yield loss is primarily driven by process defects rather than geometric inefficiency.

Typical waste rates:

ProcessScrap Rate
R2R flex PCB2–5%
S2S flex PCB8–15%

This directly impacts cost, especially for PI + FCCL materials, where raw substrate accounts for a significant share of BOM cost.

Consistent Electrical and Dimensional Performance

Once an R2R line is tuned, it operates in a highly repeatable steady state. Temperature, chemistry, and tension are stabilized, leading to:

  • Narrow copper thickness distribution

  • Stable line width across long runs

  • Uniform surface finish quality

In contrast, S2S batch processing experiences process drift between panels and lots, particularly in etching and lamination.

For high-volume products such as antennas or sensor arrays, this consistency is critical for impedance control and signal repeatability.

Lower Unit Cost at High Volume

Although R2R equipment investment is high, unit cost decreases rapidly with scale.

Cost structure comparison:

Cost ComponentR2RS2S
Equipment depreciationHighModerate
Labor per unitVery lowMedium
Yield lossLowMedium
Unit cost @ 1M pcsVery lowHigh

At volumes above 500k–1M pcs/year, R2R typically delivers 20–40% lower unit cost compared to S2S for equivalent simple flex designs.

Ideal Fit for Standardized Designs

R2R excels where:

  • The design does not change frequently

  • Feature density is moderate

  • Electrical performance requirements are consistent

Best-fit product categories include:

  • Single-sided flex PCBs

  • Simple double-sided flex PCBs

  • LED flex strips

  • Sensor arrays

  • Wearable electronics

These products share a common trait: geometry stability and volume predictability, which aligns perfectly with R2R economics.

Limitations and Technical Challenges of R2R Flex PCB

A credible engineering evaluation must address the constraints. R2R flex PCB limitations are real and often underreported.

Layer Count Limitations

R2R is fundamentally optimized for 1–2 layer structures. Multilayer flex introduces several challenges:

  • Each additional layer requires lamination and precise interlayer alignment

  • In continuous motion, cumulative registration error becomes difficult to control

  • Web stretch and thermal expansion are amplified with stacked structures

In practice, 3+ layer flex PCBs are rarely produced fully in R2R mode. When multilayer is required, manufacturers typically switch to hybrid processing or pure S2S.

Via and Interconnection Constraints

Plated through holes (PTH) and microvias are core technologies in complex flex PCBs, but they are problematic in R2R.

Why PTH is difficult in R2R:

  • Drilling in continuous web is mechanically complex

  • Hole wall activation and plating require controlled dwell time

  • Chemical uniformity is hard to maintain at speed

Why microvias are infeasible:

  • Laser drilling requires precise positioning and stop control

  • R2R motion makes sub-50 μm accuracy extremely challenging

As a result, most R2R designs rely on:

  • No vias, or

  • Simple through connections using printed jumpers or carbon bridges

This is a major constraint compared to S2S processing.

Design Restrictions

R2R imposes stricter design rules:

Minimum trace width stability
While advanced lines can reach 50–75 μm, maintaining this consistently across kilometers of web is challenging. Many mass-production designs stay at 100–150 μm for yield stability.

Bend-zone copper stress control
Because R2R products are often thin and long, bend zones experience higher cumulative mechanical stress. Sharp corners and abrupt width transitions significantly increase crack risk.

Tolerance limitations vs S2S
Dimensional tolerance in R2R is typically ±0.1–0.2 mm, whereas S2S can achieve ±0.05 mm or better. For camera modules or connector interfaces, this difference is critical.

These factors collectively define the roll-to-roll PCB disadvantages that engineers must account for during architecture selection.

R2R vs Sheet-by-Sheet Flex PCB Manufacturing (Clear Comparison)

A direct comparison clarifies strategic positioning.

FeatureRoll-to-Roll (R2R)Sheet-by-Sheet (S2S)
Production volumeVery highLow to medium
Best forStandardized designsComplex designs
Layer count1–2 layers1–10+ layers
Cost per unitLow at scaleHigher
Equipment investmentVery highModerate
FlexibilityLowHigh
Via capabilityLimitedFull (PTH, microvia)
Tolerance controlMediumHigh

Interpretation:
R2R is a manufacturing efficiency weapon. S2S is a design flexibility platform. They are not competitors in the same sense; they serve different product strategies.

This is the practical reality behind R2R vs S2S flex PCB decisions.

When Should You Choose Roll-to-Roll Flex PCB Manufacturing?

Selecting R2R is not a tactical sourcing choice; it is a strategic manufacturing decision tied to product lifecycle, volume trajectory, and design stability.

From a cost–engineering perspective, R2R becomes economically rational when volume and design stability outweigh flexibility requirements.

Conditions That Favor R2R

R2R is most appropriate when annual volume is high (typically ≥300k–500k units), the layout is frozen and standardized, and the structure is single-sided or simple double-sided flex. In these cases, production efficiency and material utilization dominate cost structure, making R2R the lowest total cost option.

In consumer electronics, wearable devices, and LED lighting, product lifecycles are often short but volumes are extreme. Here, the ability of R2R lines to run continuously for days or weeks without changeover directly translates into margin protection.

Conditions That Disfavor R2R

R2R should be avoided when the product is in prototyping or frequent revision phase, or when the design requires multilayer stacks, rigid-flex transitions, tight connector tolerances, or complex via structures. These conditions favor S2S, where batch processing and discrete handling allow fine control.

From an engineering management viewpoint, forcing an R2R solution on an unstable or complex design often leads to:

  • Escalating NRE cost

  • Yield instability

  • Schedule risk

The correct framing is: R2R is optimized for scale, not experimentation.

Design Guidelines for R2R-Friendly Flex PCB Layouts

Most competitor content stops at process description. In reality, layout discipline determines whether R2R will succeed or fail. Designing for continuous manufacturing requires a shift in mindset.

Trace Orientation Along Web Direction

In R2R, the substrate is under constant longitudinal tension. Traces aligned with the machine direction (MD) experience significantly lower mechanical strain compared to transverse traces.

Empirical fatigue testing shows that copper traces parallel to MD can survive 2–3× more bend cycles under identical radius conditions. For dynamic applications such as wearables, this orientation strategy directly improves field reliability.

Avoid Sharp Copper Corners

Sharp corners act as stress concentrators. In continuous web handling, these become crack initiation points. Rounded corners and gradual neck-down transitions distribute stress more evenly.

From a reliability engineering perspective, replacing 90° corners with R ≥ 0.3–0.5 mm fillets can improve flex life by 30–50% in repeated bend tests.

Minimize Via Usage

Vias are process and reliability liabilities in R2R. Each via introduces:

  • Registration risk

  • Plating variability

  • Mechanical weak points

High-yield R2R designs typically use single-layer routing strategies, jumper traces, or printed bridges to avoid vertical interconnects.

Standardize Panel Width

R2R lines are engineered around specific web widths. Designing to standard widths (e.g. 250 mm, 300 mm, 500 mm) improves:

  • Material utilization

  • Tension stability

  • Slitting efficiency

Custom widths increase trim loss and reduce line efficiency. In cost-sensitive products, width standardization alone can reduce substrate waste by 5–8%.

Design for Continuous Processing

Features that require stop-start operations, localized reinforcement, or post-process manual intervention are structurally incompatible with R2R economics. The design assumption must be:

The line does not stop for your product.

If your layout requires exceptions, it is a signal that S2S may be the correct platform.

Cost Structure of Roll-to-Roll Flex PCB Manufacturing

Understanding roll to roll flex PCB cost requires looking beyond unit price and into cost architecture.

  • Tooling and Setup Cost

Initial setup includes:

  • Process tuning

  • Web guides and fixtures

  • Registration calibration

These are typically higher than S2S. NRE for R2R can be 1.5–2× higher, but it is amortized over much larger volumes.

  • Equipment Amortization

R2R lines represent significant capital investment. A fully integrated R2R flex line can cost USD 3–8 million, depending on width and automation level.

However, because output is high, depreciation per unit is low at scale.

ParameterR2RS2S
CapExVery highModerate
Output/hourVery highMedium
Depreciation per 1k pcsLowHigher
  • Material Utilization Efficiency

R2R’s edge-to-edge processing reduces panel margins and handling loss. In high-volume production, material utilization often reaches 95–97%, compared to 85–90% in S2S.

For PI-based FCCL, this difference alone can account for 3–6% cost reduction.

  • Break-Even Volume Analysis (R2R vs S2S)

A simplified model:

Annual VolumeR2R Unit CostS2S Unit CostPreferred
50k unitsHighMediumS2S
200k unitsMediumMediumCase-dependent
500k unitsLowMediumR2R
1M+ unitsVery lowHighR2R

In most scenarios, the break-even point lies between 200k–400k units/year, depending on complexity and yield.

This is why R2R PCB pricing becomes compelling only when volume is real and sustained.

Typical Applications of Roll-to-Roll Flex PCBs

R2R adoption is driven by applications that combine volume, standardization, and moderate complexity.

  • Wearable Electronics

Smart bands, health monitors, and fitness trackers rely heavily on:

  • Single-layer flex circuits

  • Antenna structures

  • Sensor interconnects

R2R provides the cost structure required for consumer price points.

  • Medical Disposable Sensors

ECG patches, glucose sensors, and diagnostic strips are produced in millions of units. Here, R2R’s low unit cost and consistent quality are essential for regulatory compliance and margin control.

  • Flexible Lighting (LED Strips)

LED flex strips are a textbook R2R product:

  • Long continuous geometry

  • Simple double-sided structure

  • Extreme volume

Nearly all high-volume LED flex is produced using R2R processes.

  • Consumer Electronics Interconnects

Camera modules, display connections, and antenna flexes in smartphones increasingly rely on R2R for cost competitiveness.

  • Industrial Sensor Arrays

Pressure mats, touch sensors, and large-area sensing films benefit from R2R’s ability to produce wide, continuous circuits with uniform properties.

These applications expand the keyword footprint and reflect real industrial adoption patterns.

FAQs About Roll-to-Roll Flex PCB Manufacturing

  • Can R2R be used for multilayer flex PCBs?

In practice, no. True multilayer flex is poorly suited to full R2R processing due to interlayer registration and lamination challenges. Hybrid approaches may be used, but pure R2R is typically limited to 1–2 layers.

  • Is roll-to-roll suitable for quick-turn prototypes?

No. R2R is optimized for steady-state production. Prototyping and quick-turn iterations are structurally incompatible with R2R economics and setup requirements. S2S is the correct choice for early-stage development.

  • What materials are best for R2R flex PCB?

Polyimide (PI) with rolled annealed copper remains the dominant choice for electronics-grade R2R. PET is used for low-temperature, low-cost applications such as disposable sensors.

  • What is the minimum order quantity?

Commercially, R2R becomes viable at tens of thousands of units for simple designs, but true cost advantage is realized at hundreds of thousands or more.

  • How reliable is R2R compared to S2S?

When properly designed, R2R products show equal or better field reliability due to process consistency. Failures usually trace back to design incompatibility, not the process itself.

Conclusion: R2R Is a Manufacturing Strategy—Not a Universal Solution

Roll-to-roll flex PCB manufacturing excels in volume, consistency, and unit economics. It is a powerful industrial tool for standardized, high-volume products.

However, it is not a universal replacement for sheet-based processing. S2S remains indispensable for:

  • Complex multilayer designs

  • Rigid-flex structures

  • Tight dimensional control

  • Rapid iteration and prototyping

The most capable manufacturers are those who master both R2R and S2S and select the process based on engineering reality—not marketing narratives.

For product teams, the correct question is not:

“Which process is cheaper?”

but:

“Which process aligns with my design architecture, volume trajectory, and risk profile?”

If you are evaluating flex PCB process options for a new project, engaging early with a manufacturer who understands both paradigms can prevent costly redesigns and schedule delays.
